METHODOLOGY FOR FIRE & GAS STUDY

1.    Proposed Methodology

1.1. F&G Study Methodology

This 2D fire and gas mapping study shall be carried out based on the approved Fire and Gas Detector 2D Mapping Assumption Register. The methodology is presented below.

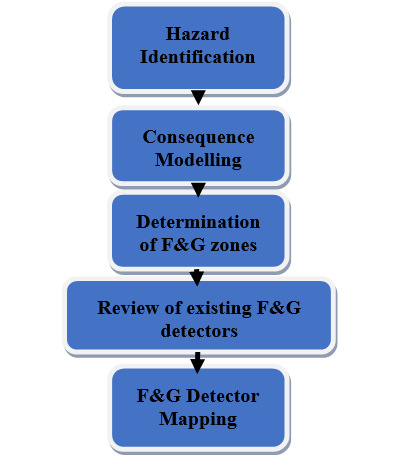

Figure 1: Fire and Gas Detector Mapping Study Methodology

The above methodology is described below

Hazard Identification: For the collection of data. Identification of scenarios based upon detailed review of project documents (PFD, P&ID, and Plot Plans etc.). Scenario identification also includes identification of Hazardous Materials in the project facility.

Consequence Modelling: Conduct consequence assessment to determine the dispersion of flammable gas (25 % LFL and 50 % LFL), fire scenarios (jet/pool fire) radiation distances (12.5 kW/m2) and toxic distances (10 ppm and 20 ppm), actual assessment criteria can be finalized based on mutual agreement with client.

Determination of F&G zones: In line with the existing F&G zones, F&G mapping study will be conducted.

F&G Detector Mapping: Conduct Fire and Gas detector mapping taking into consideration the consequence results, adequacy of existing fire and gas detectors on overall Fire and Gas detectors layout provided.

1.2. Limitation of 2D F&G Mapping

As agreed by the Company and Consultant, this study is conducted using 2D F&G detection mapping and following are the limitations:

  • The zone wise percentage detector coverage cannot be determined using 2D F&G Model.

  • Unlike 3D F&G mapping, coordinates of detectors cannot be determined in 2D F&G mapping.

  • Azimuth and declination can be determined for Flame Detector only in 3D F&G mapping. They cannot be determined in 2D F&G mapping.

  • Voting degradation cannot be determined.

  • The performance requirements of the F&G detectors cannot be determined.

  • Optimization is carried out based on engineering judgement only
